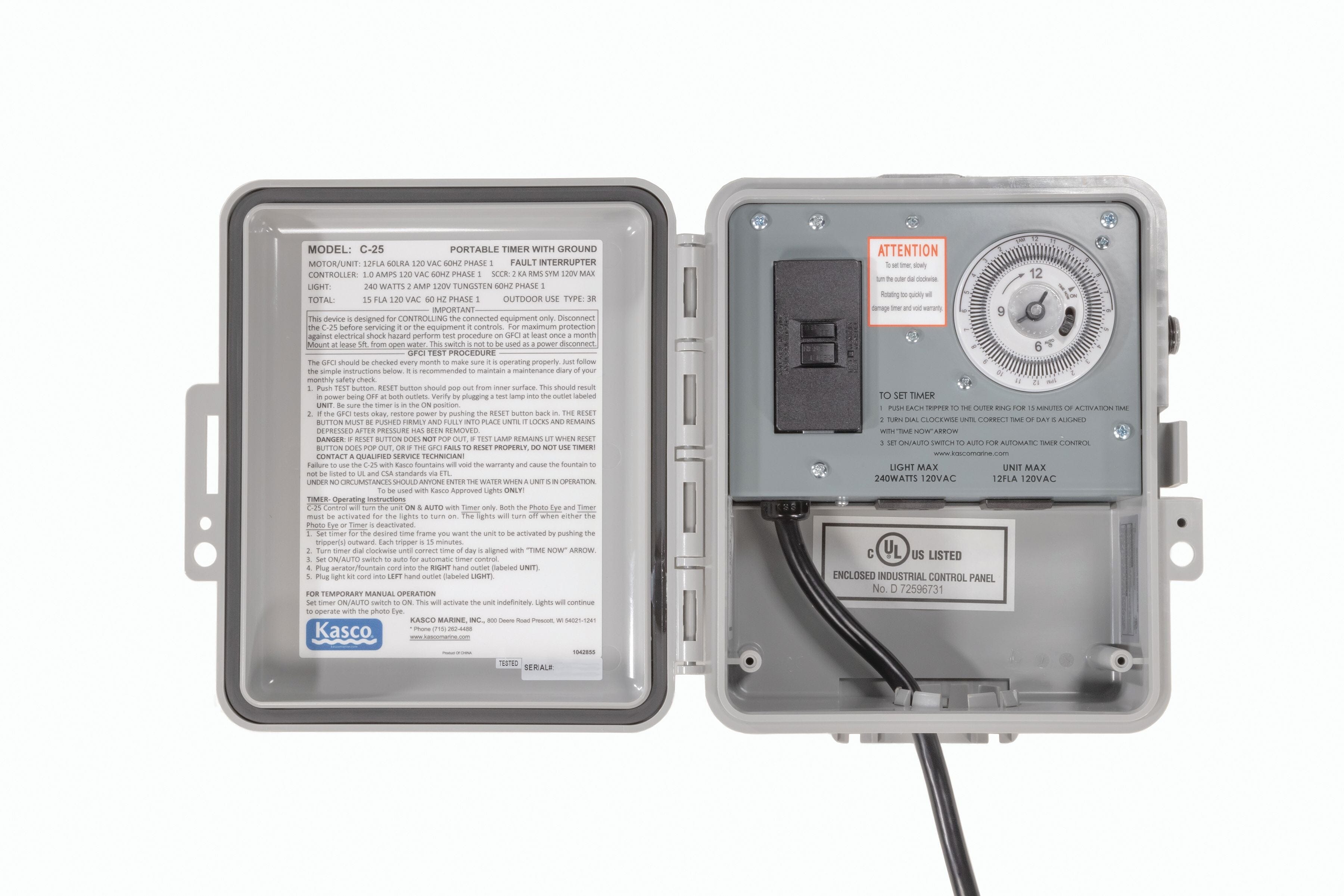

Kasco C 25 Water Fountain Control Panel for Ponds, Lakes & Aeration Systems - Durable Outdoor Use for Water Features & Circulation Pumps

The Kasco C-25 Control Panel is a top-of-the-line solution designed for fountains, circulators, and surface aerators, offering reliable and easy operation for your water feature. This control panel is engineered to deliver superior performance while ensuring user convenience and protection.

Key Features:

• 120V Single Phase Power: Built for standard 120V systems, the C-25 is designed for straightforward Plug & Go 120V hookups, making installation fast and hassle-free.

• 15 Amp Single Pole Class A Protection: Ensures safe operation, offering robust electrical protection for both your equipment and the user.

• 24-Hour Mechanical Timer: Equipped with two ON and OFF trippers, the timer allows you to easily schedule your fountain or aerator to operate exactly when you need it, providing efficiency and energy savings.

• Photocell for Optional Light Kit: The included photocell enables automatic operation of optional light kits, providing enhanced nighttime illumination with hands-off control.

• Weatherproof & UV Resistant Enclosure: The NEMA Type 3R weatherproof plastic enclosure is not only UV resistant but also built to withstand the elements, ensuring durability for outdoor use.

• Two Cord Entry Openings: Designed with two convenient bottom cord entry points, making wiring and setup clean and organized.

• Dedicated Outlets:

  • Wired 120V “UNIT” outlet for connecting your primary fountain or aerator.
  • Wired 120V “LIGHT” outlet for connecting lighting systems or accessories.

• Lockable & Accessible: The lockable enclosure ensures security, and the door-mounted instructions provide clear guidance for easy operation and maintenance.

Whether you're setting up a fountain in your garden, an aerator in a pond, or a water circulator in a large body of water, the Kasco C-25 Control Panel offers unmatched versatility, ease of use, and protection, making it the ideal choice for enhancing your water feature system.

120V, Single Phase

Plug & Go 120V Hook Up

15 Amp Single Pole Class A

24 Hour Mechanical Timer with Two Each ON and OFF Trippers

Photo Cell for Optional Light Kit

UV Resistant NEMA Type 3R Weatherproof Plastic Enclosure with Two Cord Entry Bottom Openings

Wired 120V “UNIT” Outlet

Wired 120V “LIGHT” Outlet

Door Mounted Instructions

Lockable Enclosure

Panel Specs

Single Phase Fountain, Aerator, & Circulator Control Panels :
